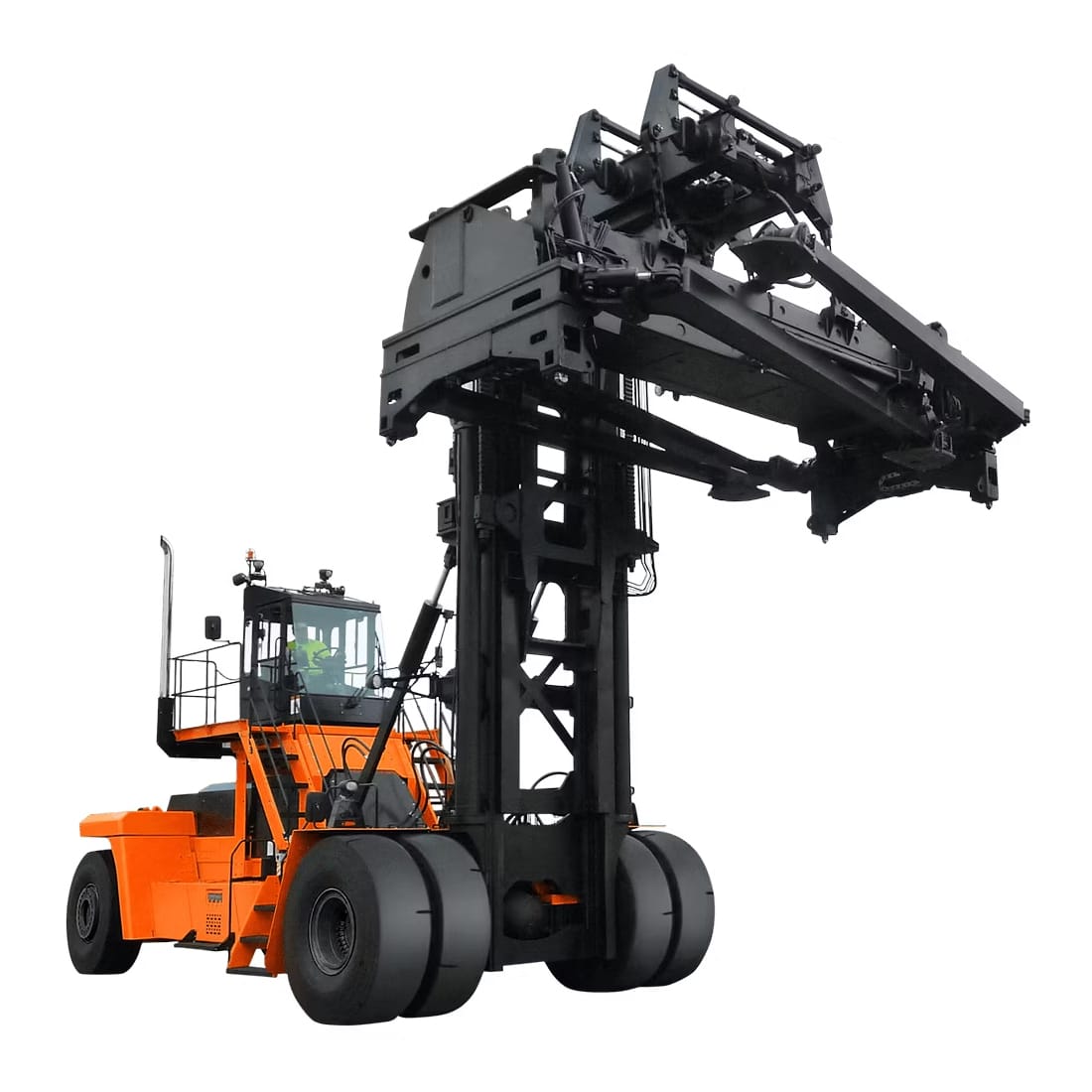

Loaded Container Handler

King of the Shipyard

With a container lifting capacity of up to 90,000 lbs. and the ability to stack up to 6 containers high, this exceptionally stable container handler can be used in the most rugged applications.

Load Capacity up to 90,000 lbs.
Travel Speed 19.2 – 20 MPH
Fuel Type Diesel
Wheelbase 236 – 275”
Load Center 97”



Request a Quote

Don’t know exactly what you need? Not to worry. A member of our team will contact and assist you.

Model
Number
Load Capacity*
(lbs)
Max Travel Speed
Full Load (mph)
Max Lift Speed
Full Load (fpm)
Max Gradeability
Full Load (%)
Basic Right Angle
Stack** (in.)
THD8000-L6 80,000 (2-High) / 75,000 (6-High) 20 47 9.8 522 (20′ cont.) / 601 (40′ cont.)
THD8600-L5 86,000 (2-High) / 76,000 (5-High) 19.2 47 10.7 522 (20′ cont.) / 601 (40′ cont.)
THD9000-L3 90,000 (2-High) / 90,000 (3-High) 19.2 47 11.5 522 (20′ cont.) / 601 (40′ cont.)
THD9000-L4 90,000 (2-High) / 85,000 (4-High) 19.2 47 11.1 522 (20′ cont.) / 601 (40′ cont.)

* Based on 24″ Load center
** Add load length and clearance

Product specifications may not reflect the most current product details. All specifications should be verified by Shoppa’s Material Handling prior to purchase.

Performance Icon Performance - Loaded Container Handler - Shoppa's Material Handling

  • CUMMINS® 10.8 liter, 6-cylinder Tier 3 diesel engine
    • Common-rail electronic fuel injection system
  • Dana model 36000 transmission with 3 forward & 3 reverse speeds
  • Tilt position indicator
  • Suspended attachment with four ISO twistlocks
  • Load sensing, hydrostatic-powered steering
  • Independent brake & brake/declutch pedals
  • 3-spool main control valve (lift, tilt, attachment)
  • Load-sensing steering & brake pump • Upswept exhaust

Ease of Service Icon Service - Loaded Container Handler - Shoppa's Material Handling

  • Electronic engine diagnostics with fault code history
  • Easy-access filters
  • Hydraulic multi-gauge
  • Externally serviceable brakes
  • Hinged engine compartment doors with gas struts
  • External attachment spreader cylinders
  • Bolt-on tanks, counterweights, cab super-structure, and stairways (removable)

Safety Icon Safety - Loaded Container Handler - Shoppa's Material Handling

  • Electric horn
  • Asbestos-free components
  • Neutral safety switch
  • Integrated overhead guard
  • Operator restraint system seat
  • Operator Presence Sensing System (OPSS)
  • Turn speed control

Ergonomics Icon Ergonomics - Loaded Container Handler - Shoppa's Material Handling

  • LED forward-facing cab-mounted headlights
  • LED forward-facing front fender-mounted headlights
  • LED forward-facing mast-mounted headlights
  • LED forward-facing attachment-mounted spreader headlights
  • LED rearward-facing lights
  • LED forward-facing gallow lights
  • Stairway lighting
  • Strobe light
