Large Electric Walkie

Helping You Take a Load Off

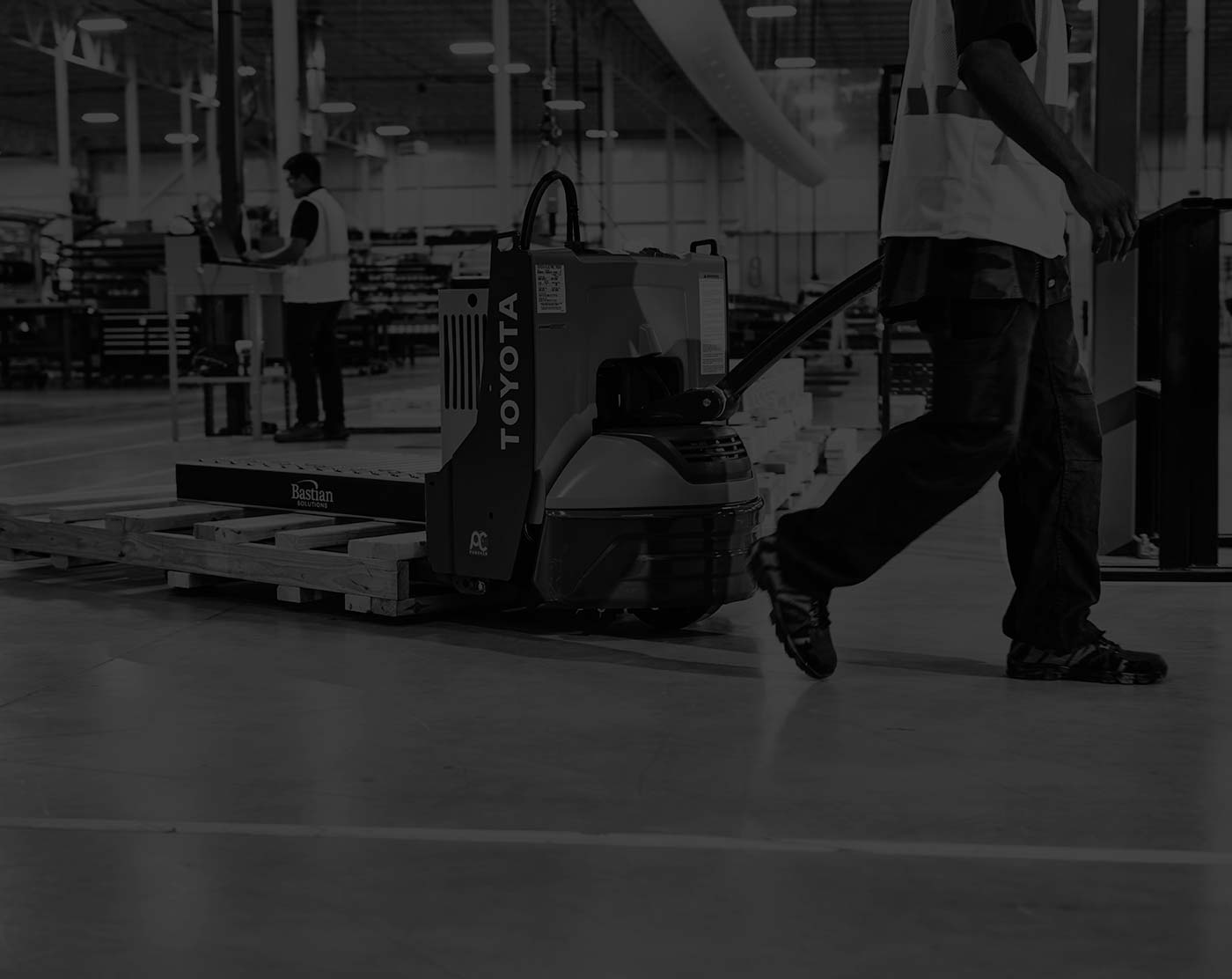

Whether you are using a staging area for loading and unloading or you need a solution for here-and-there material handling jobs, the Large Electric Walkie Pallet Jack makes maneuvering heavy loads throughout the warehouse efficient, convenient and productive.

Load Capacity 6,000 – 8,000 lbs.
Travel Speed 3.9 MPH
Electrical  System 24V
Overall Length 63.7 – 93.7”
Height (Extended Handle) 56.7”
Overall Width 32.5”



Request a Quote

Don’t know exactly what you need? Not to worry. A member of our team will contact and assist you.

Model
Number
Load Capacity*
(lbs)
Max Travel Speed
Full Load (mph)
Max Lift Speed
Full Load (fpm)
Max Gradeability
Full Load (%)
Basic Right Angle
Stack** (in.)
8HBW30 6000 3.9 N/A 10 73.4
8HBW40 8000 3.9 N/A 10 73.4

* Based on 24″ Load center
** Add load length and clearance

Product specifications may not reflect the most current product details. All specifications should be verified by Shoppa’s Material Handling prior to purchase.

Performance Icon Performance - Large Electric Walkie - Shoppa's Material Handling

  • AC drive motor with thermal protection & current limiting
  • 24-Volt electrical system
  • 6″ lift
  • Fault code memory with hour meter reading
  • Regenerative braking

Ease of Service Icon Service - Large Electric Walkie - Shoppa's Material Handling

  • AC drive motor (no brushes or commutator)
  • Self-adjusting electric disc brake
  • One-piece, lightweight service access cover
  • Teflon® coated PolyLube™ lift linkage bushings (Maintenance Free)
  • Error indicator with self-diagnostics

Safety Icon Safety - Large Electric Walkie - Shoppa's Material Handling

  • Wrap-around hand guard
  • Spring-loaded control handle
  • Runaway protection
  • Directional reverse switch on control handle
  • Side-stabilizer steel bars
  • Electric horn

Ergonomics Icon Ergonomics - Large Electric Walkie - Shoppa's Material Handling

  • Multifunction control handle with ergonomically angled hand grips and wrap-around hand guard
  • Dual thumb Wheels for Directional Control and travel speed
  • Intuitively positioned lift/lower and horn buttons (Horn button on 8TB50 Only)
  • Low-effort control handle
