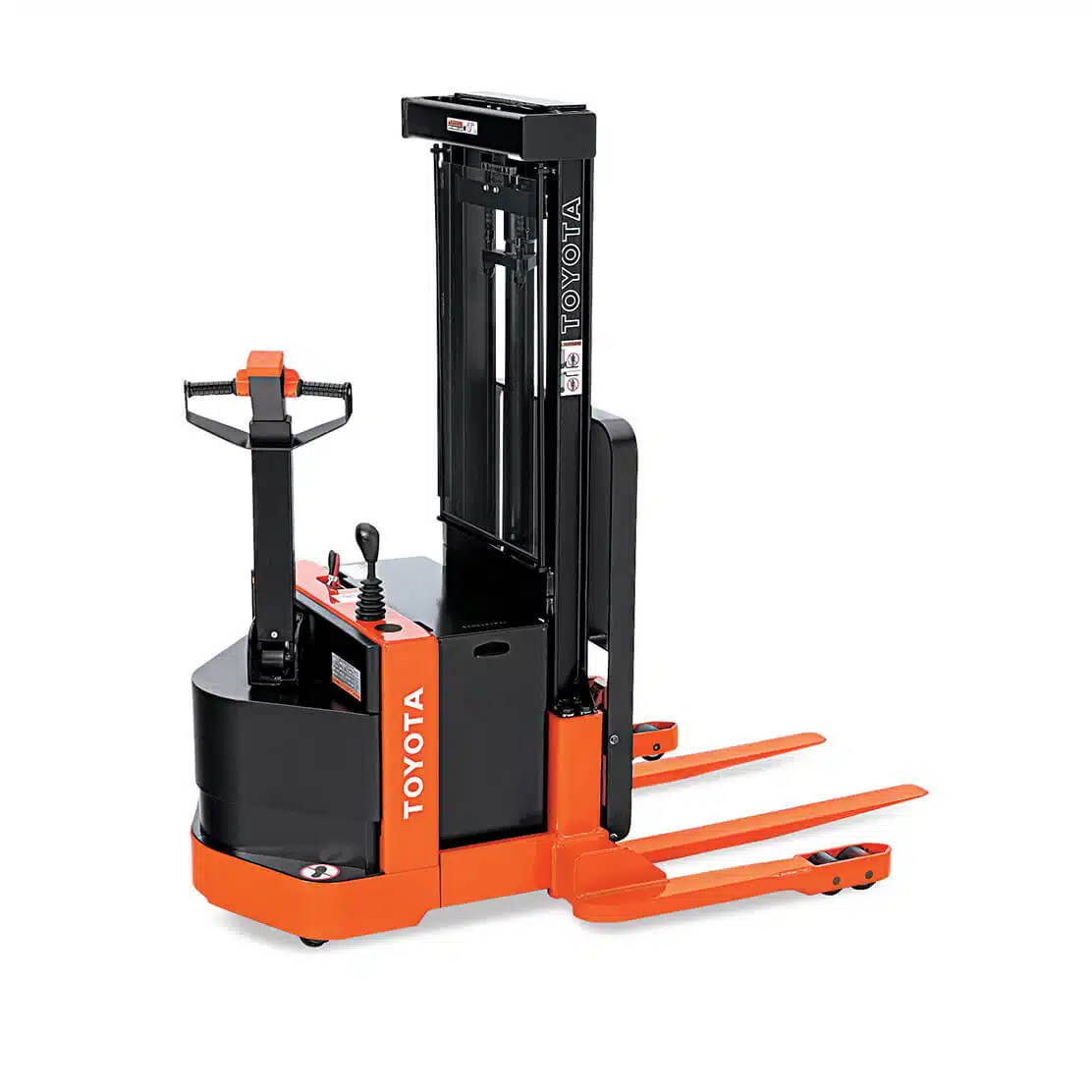

Industrial Walkie Stacker

The High-Achiever

When a traditional forklift isn’t necessary but lifting product above a second-tier rack is, the Toyota Industrial Stacker is a cost-efficient, easy-to-use solution.

Load Capacity 2,200 – 4,000 lbs.
Travel Speed 2.6 – 2.9 MPH
Electrical  System 24V
Length to Forkface 38.4 – 47.9”
Mast Lowered Height 83”
Overall Width 40 – 58”



Request a Quote

Don’t know exactly what you need? Not to worry. A member of our team will contact and assist you.

Model
Number
Load Capacity*
(lbs)
Max Travel Speed
Full Load (mph)
Max Lift Speed
Full Load (fpm)
Max Gradeability
Full Load (%)
Basic Right Angle
Stack** (in.)
6BSW11 2,200 2.9 32 6 81
6BWS15 3,000 2.9 32 6 85
6BWS20 4,000 2.6 27 6 88

* Based on 24″ Load center
** Add load length and clearance

Product specifications may not reflect the most current product details. All specifications should be verified by Shoppa’s Material Handling prior to purchase.

Performance

  • 24-Volt electrical system S
  • SB-175 connector (red)
  • On/off key switch
  • UL-approved model type “E”
  • Electric raise & lower controls in operator handle
  • Manual raise and lower controls on console

Ease of Service

  • Easy-access service cover
  • Battery compartment: 32.3″ x 13.3″ x open height
  • Power on self-test



Safety

  • Electric horn
  • High-visibility mast
  • Emergency power disconnect switch

Ergonomics

  • Automatic resetting circuit breaker
  • Reverse polarity protection contactor
  • Mechanical drum brake
  • Directional thumb control
  • Safety glass mast guard
  • Direction reverse switch in control handle
