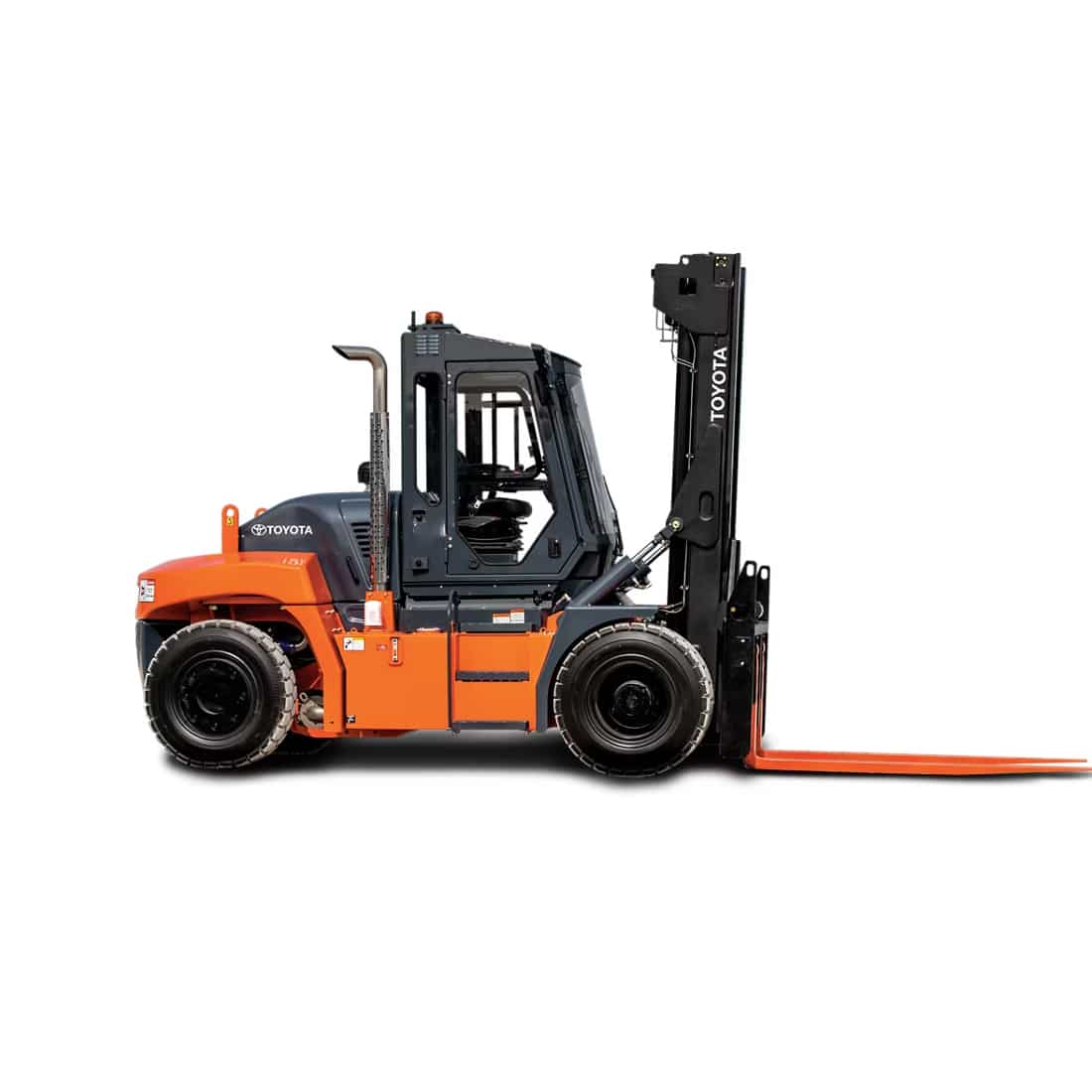

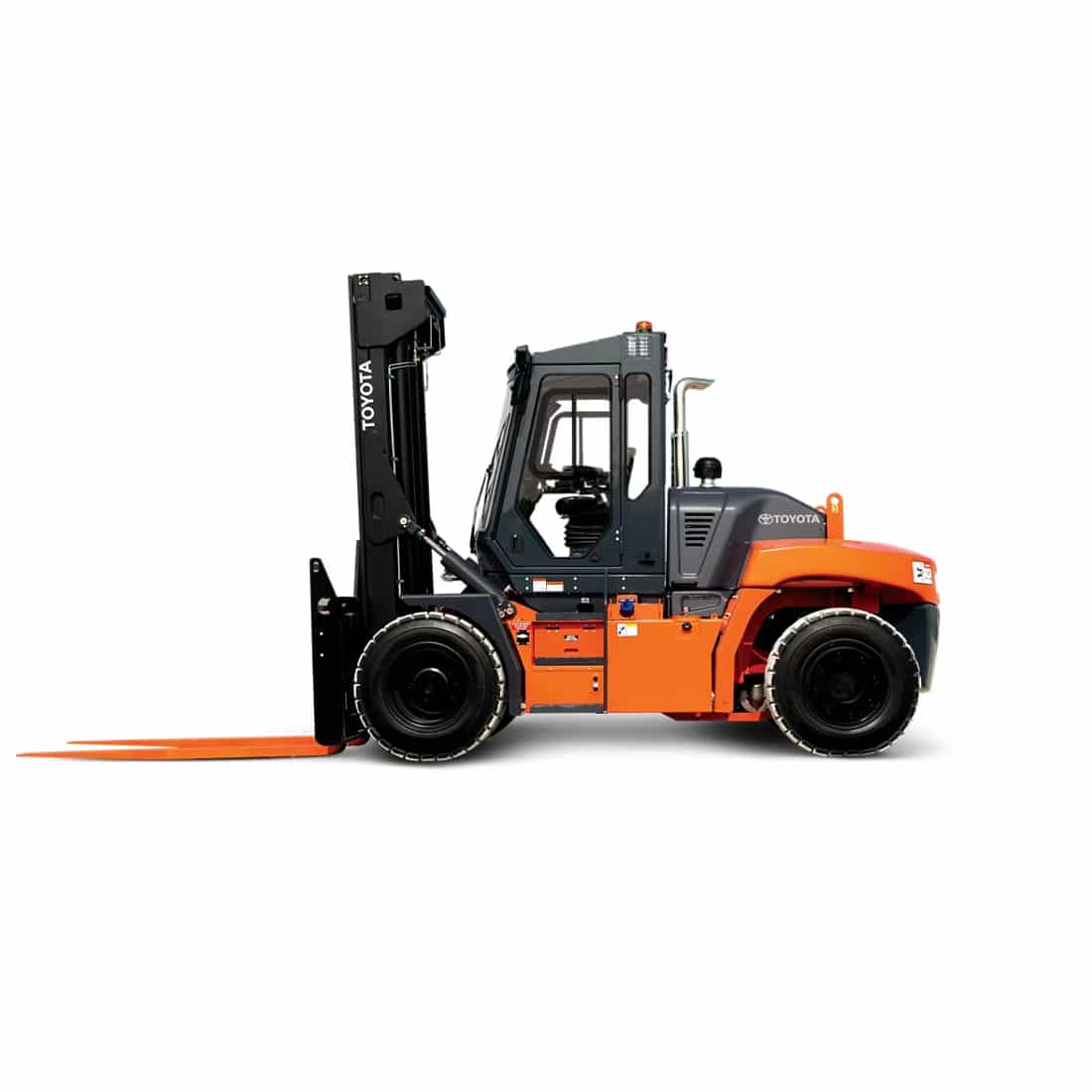

High-Capacity Core IC Pneumatic Forklift

Put The Power in Your Hands

With standard load capacity up to 30,000 pounds, Toyota’s High-Capacity Core IC Pneumatic Forklift is ideal for lumber, steel, and automotive applications and can help you move almost anything. Top it off with the durability of a rugged drive axel and Dana transmission, and you’re ready to get the job done.

Load Capacity 22,000 – 30,000 lbs.
Maximum Fork Height 138”
Horsepower 173
Overall Length 180.08 – 180.58”
Overall Height 133.41”
Overall Width 98.09”



Request a Quote

Don’t know exactly what you need? Not to worry. A member of our team will contact and assist you.

Model
Number
Load Capacity*
(lbs)
Max Travel Speed
Full Load (mph)
Max Lift Speed
Full Load (fpm)
Max Gradeability
Full Load (%)
Basic Right Angle
Stack** (in.)
2THD220-24 22,000 17.9 87 N/A 194.23
2THD240-24 24,000 17.9 87 N/A 194.48
2THD260-24 26,000 17.9 87 N/A 194.48
2THD280-24 28,000 17.9 87 N/A 194.73
2THD300-24 30,000 17.9 87 N/A 194.73

* Based on 24″ Load center
** Add load length and clearance

Product specifications may not reflect the most current product details. All specifications should be verified by Shoppa’s Material Handling prior to purchase.

Performance Icon Performance - High-Capacity Core IC Pneumatic Forklift - Shoppa's Material Handling

  • CUMMINS® 4.5-liter Tier 4 Final diesel engine (4-cylinder)
    • Common-rail electronic fuel injection system
    • Turbocharged & intercooled
    • Self-regenerating DPF
    • SCR (Selective Catalytic Reduction)
  • Dana TE-10 electronically controlled powershift transmission
  • 7″ touch-screen multi-function display
  • Dual pump “full flow”, on-demand load sensing hydraulic system
  • 2-function hydraulic control valve (lift & tilt)
  • Independent brake & inching pedals
  • Upswept exhaust

Ease of Service Icon Service - High-Capacity Core IC Pneumatic Forklift - Shoppa's Material Handling

  • Remote oil drain
  • Easy-access filters
  • Easy-lift hoods, panels, and doors
  • Externally serviceable brakes
  • Cab tilt with manual handpump

Safety Icon Safety - High-Capacity Core IC Pneumatic Forklift - Shoppa's Material Handling

  • Neutral safety switch
  • Integrated overhead guard
  • Operator restraint system

Ergonomics Icon Ergonomics - High-Capacity Core IC Pneumatic Forklift - Shoppa's Material Handling

  • Front and rear reflectors
  • Mechanical suspension seat
  • Telescopic and tilting steering column
  • Floor mat
  • Operator manual box
  • Roof-mounted amber strobe
  • Fingertip hydraulic controls
  • Left-hand shift lever
  • Long operator assist grips
  • Spring-applied/hydraulic-release parking brake
  • Standard premium cabin
    • Cup holder(s)
    • Enclosed cab with doors
    • Front, rear, and top wipers
    • Heat/defrost
    • Air conditioning
    • Operator fan
    • Dome light
    • Front LED work lights (2)
    • Rear work light
    • Stop/turn/tail combination lights
    • Front turn signal lights (2)
    • Aux 12V power supply
    • USB charging port(s)
    • Top and rear sunshades
    • Rearview mirror
    • AM/FM/MP3 radio with 2 speakers
