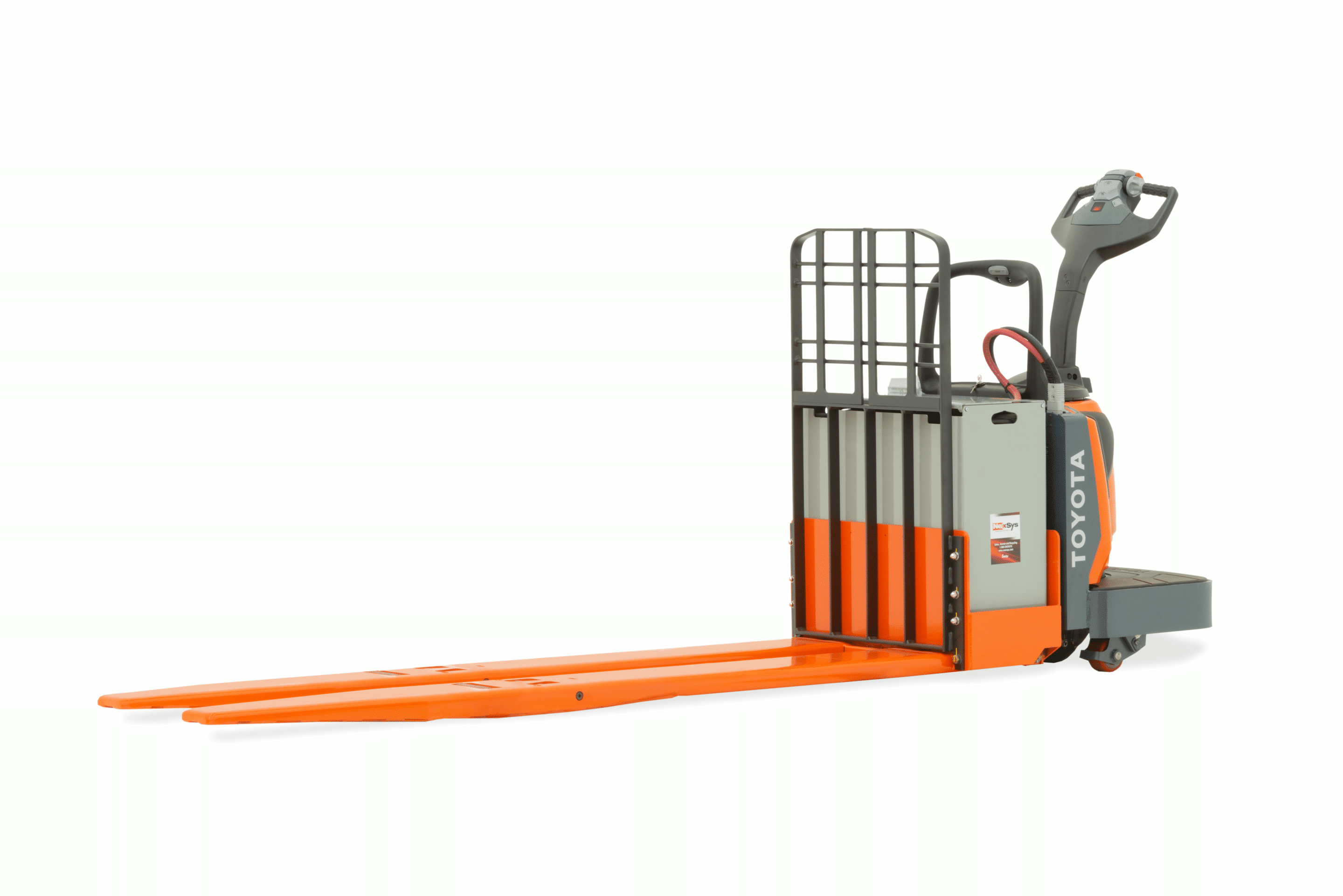

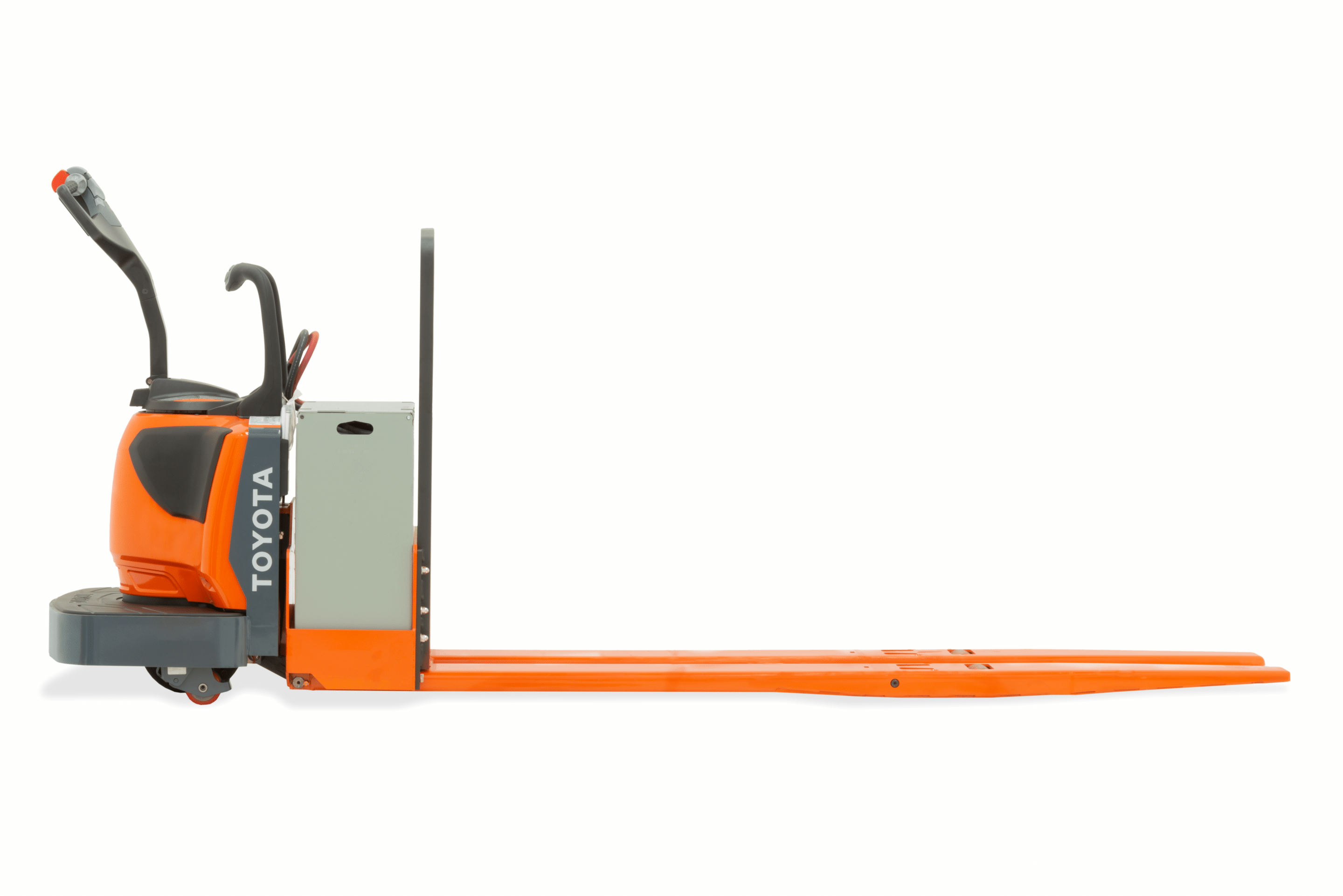

End-Controlled Rider Pallet Jack

Your Maneuverability Magician

The End-Controlled Rider, ideal for longer runs, makes moving product throughout the warehouse efficient and enjoyable. Doubling as a ground-level order picker, the End-Controlled Rider pallet jack is an asset to any warehouse or distribution center.

Load Capacity 6,000 – 8000 lbs.
Travel Speed 6.5 MPH
Electrical  System 24V
Overall Length 76.4 – 186.8”
Height (Extended Handle) 56.7”
Overall Width 36”



Request a Quote

Don’t know exactly what you need? Not to worry. A member of our team will contact and assist you.

Model
Number
Load Capacity*
(lbs)
Max Travel Speed
Full Load (mph)
Max Lift Speed
Full Load (fpm)
Max Gradeability
Full Load (%)
Basic Right Angle
Stack** (in.)
8HBE30 6,000 6.5 N/A 10 85.4
8HBE40 8,000 6.2 N/A 10 129.3

* Based on 24″ Load center
** Add load length and clearance

Product specifications may not reflect the most current product details. All specifications should be verified by Shoppa’s Material Handling prior to purchase.

Safety Icon Safety - End-Controlled Rider Pallet Jack - Shoppa's Material Handling

  • Stability handrail with lift, lower, horn and high-speed functions
  • Wrap-around hand guard
  • Spring-loaded control handle
  • Runaway protection
  • Directional reverse switch on control handle
  • Electric horn

Ergonomics Icon Ergonomics - End-Controlled Rider Pallet Jack - Shoppa's Material Handling

  • Multifunction control handle with ergonomically angled hand grips and wrap-around hand guard
  • Dual thumb wheels with twist grips for directional control and travel speed
  • Intuitively positioned lift/lower and horn buttons (horn button on 8TB50 Only)
  • Soft-cushioned rider platform
  • Low platform step height
