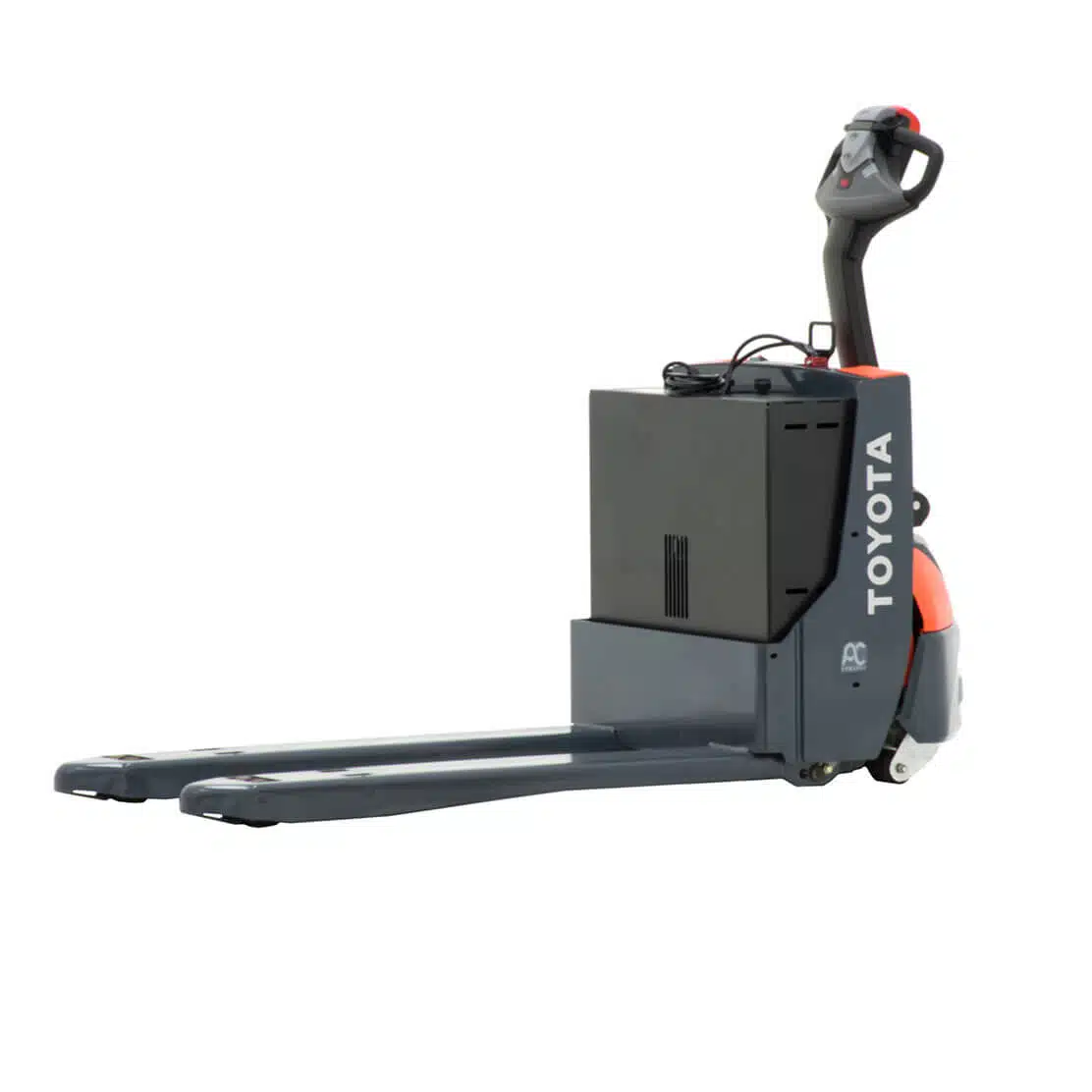

Electric Walkie Pallet Jack

Mid-Run Pro

The first of its kind to offer a factory option for an integrated fork scale, the Electric Walkie Pallet Jack can calculate weight even as the load is lifted and save space by eliminating the need for a separate scale. Ideal for mid-distance runs as well as loading and unloading trailers, it’s a handy, multi-use solution for nearly any application.

Load Capacity 4,500 lbs.
Travel Speed 3.6 MPH
Electrical  System 24V
Overall Length 53.4 – 81.4”
Lowered Mast Height 47.2”
Overall Width 26.6”



Request a Quote

Don’t know exactly what you need? Not to worry. A member of our team will contact and assist you.

Model
Number
Load Capacity*
(lbs)
Max Travel Speed
Full Load (mph)
Max Lift Speed
Full Load (fpm)
Max Gradeability
Full Load (%)
Basic Right Angle
Stack** (in.)
8HBW23 4500 3.6 N/A 10

* Based on 24″ Load center
** Add load length and clearance

Product specifications may not reflect the most current product details. All specifications should be verified by Shoppa’s Material Handling prior to purchase.

Performance

  • 24-Volt electrical system
  • AC drive motor with thermal protection & current limiting
  • Class “F” motor insulation
  • Transistor drive control system
  • Controller area network (CAN-bus) communication
  • Regenerative braking
  • Contactor-less drive controls
  • Electronic touchpad, keyless entry system with password protection
  • Programmable performance for up to 10 operators
  • Electronic raise & lower controls in operator handle
  • Programmable auto-off system
  • Error indicator with self-diagnostics
  • Fault code memory with hour meter reading

Ease of Service

  • Programmable Service Indicator
  • Battery Compartment: 26.5″ x 7.8″ x Open Height
  • High-Strength Service Cover with Pen & Pencil Storage Tray
  • Tool-free cover removal

Ergonomics

  • Multifunction control handle with ergonomically angled handgrips
  • Fingertip control of all functions
  • Directional thumb controls
  • Programmable neutral speed reduction
  • Direction reverse switch on control handle
  • Turtle torque control
  • Spring-loaded control handle
  • “Pinwheel” capability for right angle stacking
