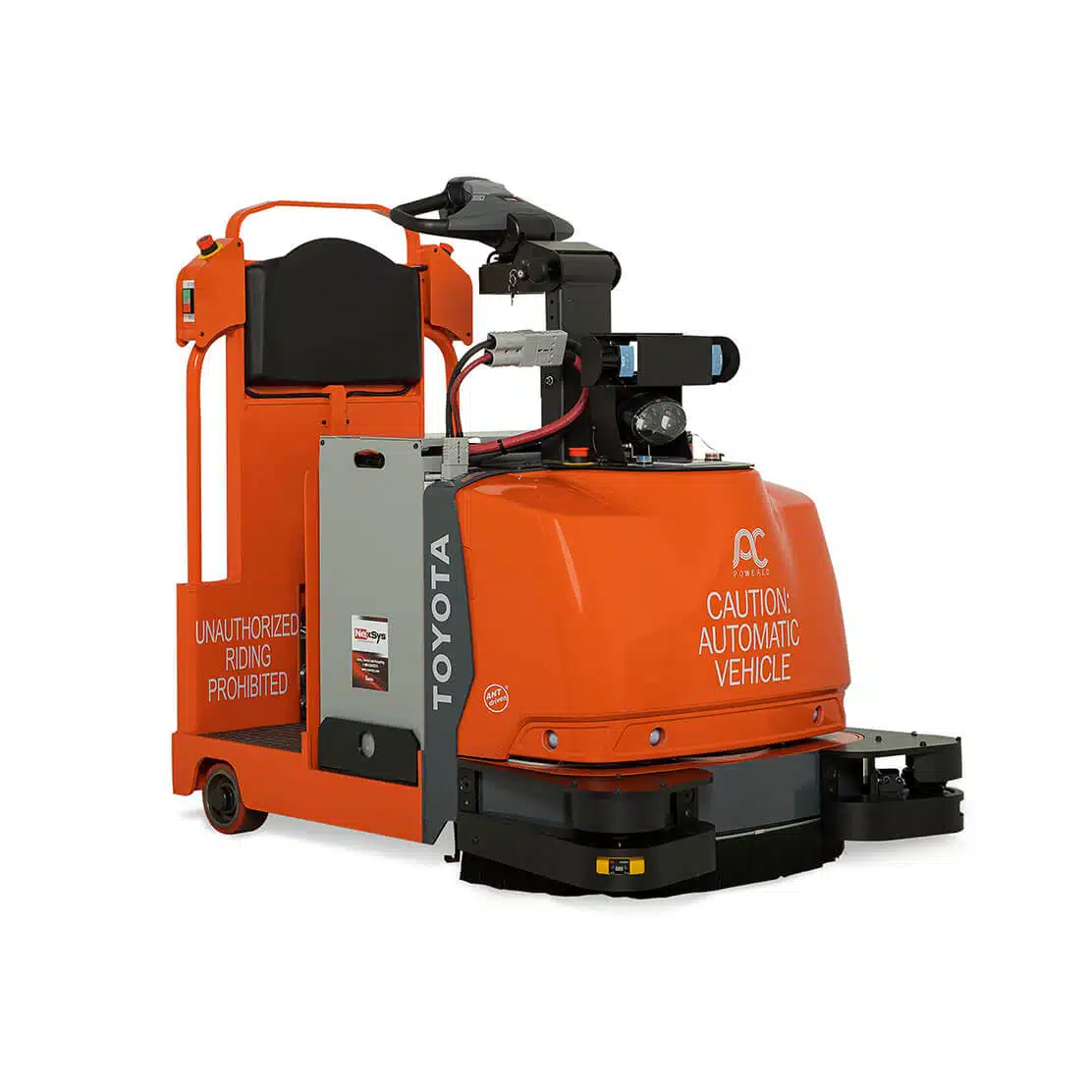

Core Tow Tractor Automated Forklift

Your Automated Workhorse

Combine the cutting-edge of automation technology with the reliability of Toyota’s dependable Tow Tractor with this ultra-intelligent Core Tow Tractor Automated Forklift. Using advanced sensors for mapped-object detection and a seamless integration to your environment, this automated towing solution will help you lower operating costs and improve efficiency for repetitive tasks.

Load Capacity 10,000 lbs.
Technology LIDAR
Electrical  System 24V
Overall Length 59.97”
Overall Height 48.81 – 53.54”
Overall Width 39.94”



Request a Quote

Don’t know exactly what you need? Not to worry. A member of our team will contact and assist you.

Model
Number
Load Capacity*
(lbs)
Max Travel Speed
Full Load (mph)
Max Lift Speed
Full Load (fpm)
Max Gradeability
Full Load (%)
Basic Right Angle
Stack** (in.)
8TB50A 10,000 4 N/A N/A N/A

* Based on 24″ Load center
** Add load length and clearance

Product specifications may not reflect the most current product details. All specifications should be verified by Shoppa’s Material Handling prior to purchase.

Performance

  • AC drive motor with thermal protection & current limiting
  • 24-Volt electrical system
  • Fault code memory with hour meter reading
  • Regenerative braking
  • Programmable performance
    • Adjustable maximum speed
    • Adjustable acceleration
  • Lift limit switch4
  • Multiple hour meter indicator
  • Battery discharge indicator
  • Fused control & power circuits
  • Hydraulic overload protection valve4
  • Dual 1.25 inch diameter lift cylinders4
  • On/off key switch



Ease of Service

  • AC drive motor (no brushes or commutator)
  • One-piece, lightweight service access cover
  • Teflon coated PolylubeTM lift linkage bushings (maintenance free)4
  • Error indicator with self-diagnostics
  • Self-adjusting electric disc brake

Automation

  • Natural features navigation
  • Velocity drive LIDAR safety field
  • Dual LIDAR scanners
  • Cantilevered load detection
  • Complete traffic control
  • Fork tip sensors4
  • Load detection on forks4
  • LCD system display
  • BlueBotics controller

Ergonomics

  • Multifunction control handle with ergonomically angled handgrips & wrap-around hand guard
  • Dual thumbwheels with twist grips for directional control & travel speed
  • Intuitively positioned lift/lower buttons
  • Horn button
  • High-speed interlock button
  • Bubble-cushioned operator floor mat, padded backrest & knee pad
  • Walk-through operator compartment
  • Low platform step height
  • Axle weldment rubber suspension system5
  • Low-effort power steering with adjustable height control handle

1 Standard only with fork lengths below 84″ (2134 mm). 2 Standard only with fork lengths 84″ (2134 mm) & above. 3 Battery compartment width is 30.25″ (768 mm) when equipped with optional battery compartment rollers. 4 Available on Center-Controlled Rider Automated Forklift only. 5 Available on Core Tow Tractor Automated Forklift only.
