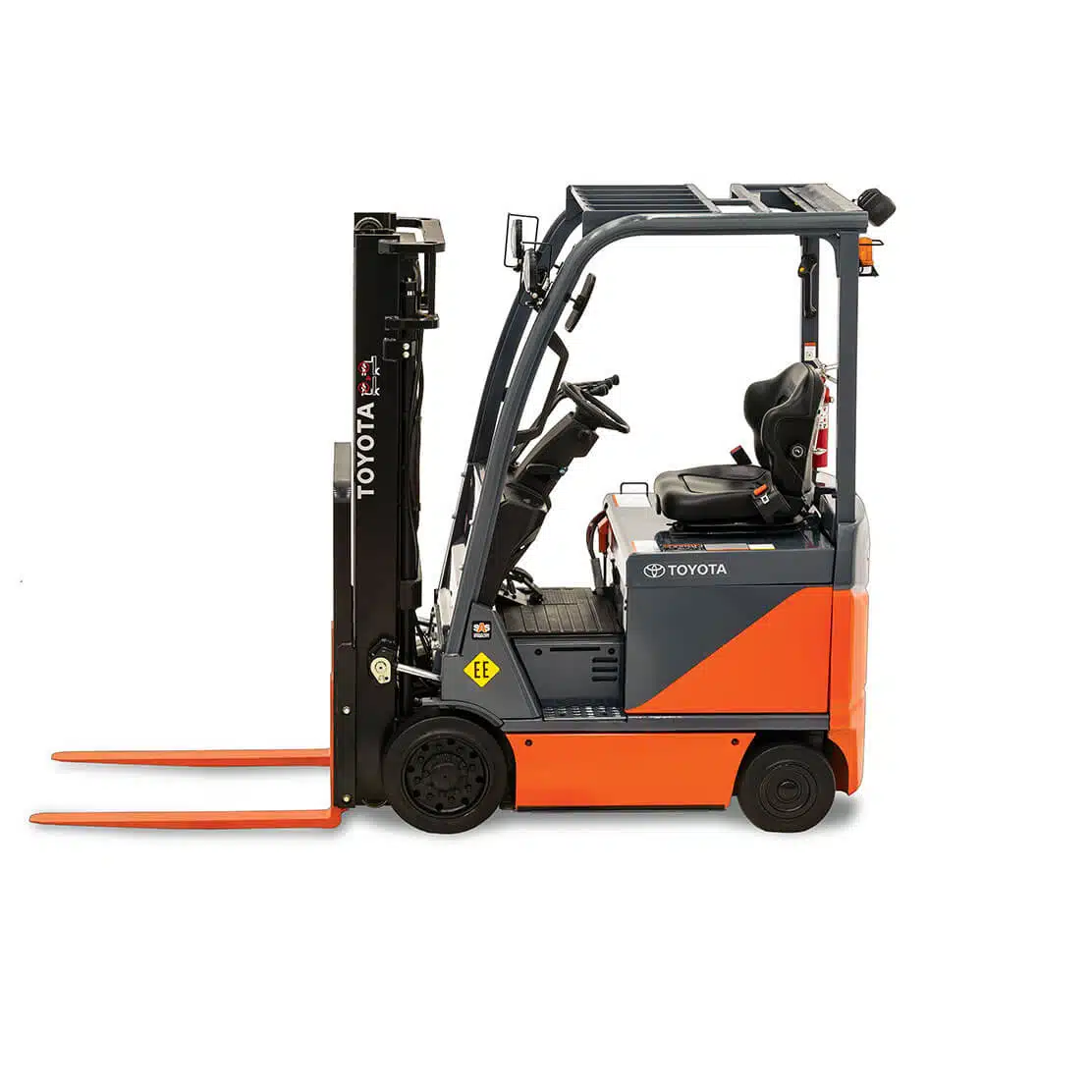

Core Electric Forklift

Reliable to the Core

This indoor workhorse can tackle anything you throw at it, even in tight spaces. And with Toyota designed and built AC motors, the Core Electric Forklift can provide new levels of performance, efficiency, and reliability to maximize your productivity.



Load Capacity 3,000 – 6,500 lbs.
Travel Speed 9 – 11.5 MPH
Electrical  System 36 / 48V
Length to Forkface 79.9 – 91.3″
Overhead Guard Height 88″
Overall Width 41.9 – 43.7



Request a Quote

Don’t know exactly what you need? Not to worry. A member of our team will contact and assist you.

Model
Number
Load Capacity*
(lbs)
Max Travel Speed
Full Load (mph)
Max Lift Speed
Full Load (fpm)
Max Gradeability
Full Load (%)
Basic Right Angle
Stack** (in.)
8FBC15U 3,000 11.5 (36V), 11.5 (48V) 88 (36V), 108 (48V) 20 (36V), 21 (48V) 82.1
8FBC18U 3,500 11.3 (36V), 11.3 (48V) 79 (36V), 100 (48V) 18 (36V), 20 (48V) 82.1
8FBCU20 4,000 11.3 (36V), 11.3 (48V) 67 (36V), 89 (48V) 25 (36V), 23 (48V) 87.2
8FBCU20-COMP 4,000 11.3 (36V), 11.3 (48V) 67 (36V), 89 (48V) 25 (36V), 23 (48V) 85.2
8FBCHU25 5,000 9.6 (36V), 11.5 (48V) 59 (36V), 79 (48V) 21 (36V), 24 (48V) 93.1
8FBCU25 5,000 9.6 (36V), 11.5 (48V) 59 (36V), 79 (48V) 21 (36V), 19 (48V) 87.6
8FBCU25-COMP 5,000 9.6 (36V), 11.5 (48V) 59 (36V), 79 (48V) 21 (36V), 19 (48V) 85.6
8FBCU28 5,500 9.3 (36V), 11.5 (48V) 55 (36V), 73 (48V) 17 (36V), 20 (48V) 90.3
8FBCU30 6,000 9.0 (36V), 11.2 (48V) 51 (36V), 69 (48V) 17 (36V), 20 (48V) 94.9
8FBCU32 6,500 9.0 (36V), 11.2 (48V) 47 (36V), 65 (48V) 17 (36V, 19 (48V) 96.4

* Based on 24″ Load center
** Add load length and clearance

Product specifications may not reflect the most current product details. All specifications should be verified by Shoppa’s Material Handling prior to purchase.

Performance Icon Performance - Core Electric Forklift - Shoppa's Material Handling

  • AC drive system
  • AC hydraulic lift system
  • UL-approved model type “E”
  • Three forms of energy regeneration
    • Coast control
    • Plug braking
    • Foot braking
  • Built-in analyzer
  • Self-diagnostics
  • Power select functions (S.P.H.)
  • 3-way hydraulic control valve

Ease of Service Icon Service - Core Electric Forklift - Shoppa's Material Handling

  • AC motors (no brushes or commutator)
  • Easy-access hydraulic motor
  • Easy-access, no-tools-required floorboard
  • Battery compartment hood assist
  • Planned Maintenance Indicator
  • Easy-access Controllers

Safety Icon Safety - Core Electric Forklift - Shoppa's Material Handling

  • System of Active Stability (SAS®)
    • Active control rear stabilizer
    • Active Mast Control
  • Operator Presence Sensing System (OPSS)
  • Bolt-on Overhead Guard
  • Foot-activated parking brake
  • Manual Return to Neutral

Ergonomics Icon Ergonomics - Core Electric Forklift - Shoppa's Material Handling

  • Four-way adjustable full-suspension seat
  • Hydrostatic (On Demand) Power Steering
  • Dual operator assist grips
  • 11.8″ diameter two-spoke steering wheel
  • Cowl-mounted hydraulic controls
  • Heavy-duty, non-slip floor mat
  • Electric directional shift control
