Center-Controlled Rider Automated Forklift

Predictably Consistent, Remarkably Accurate

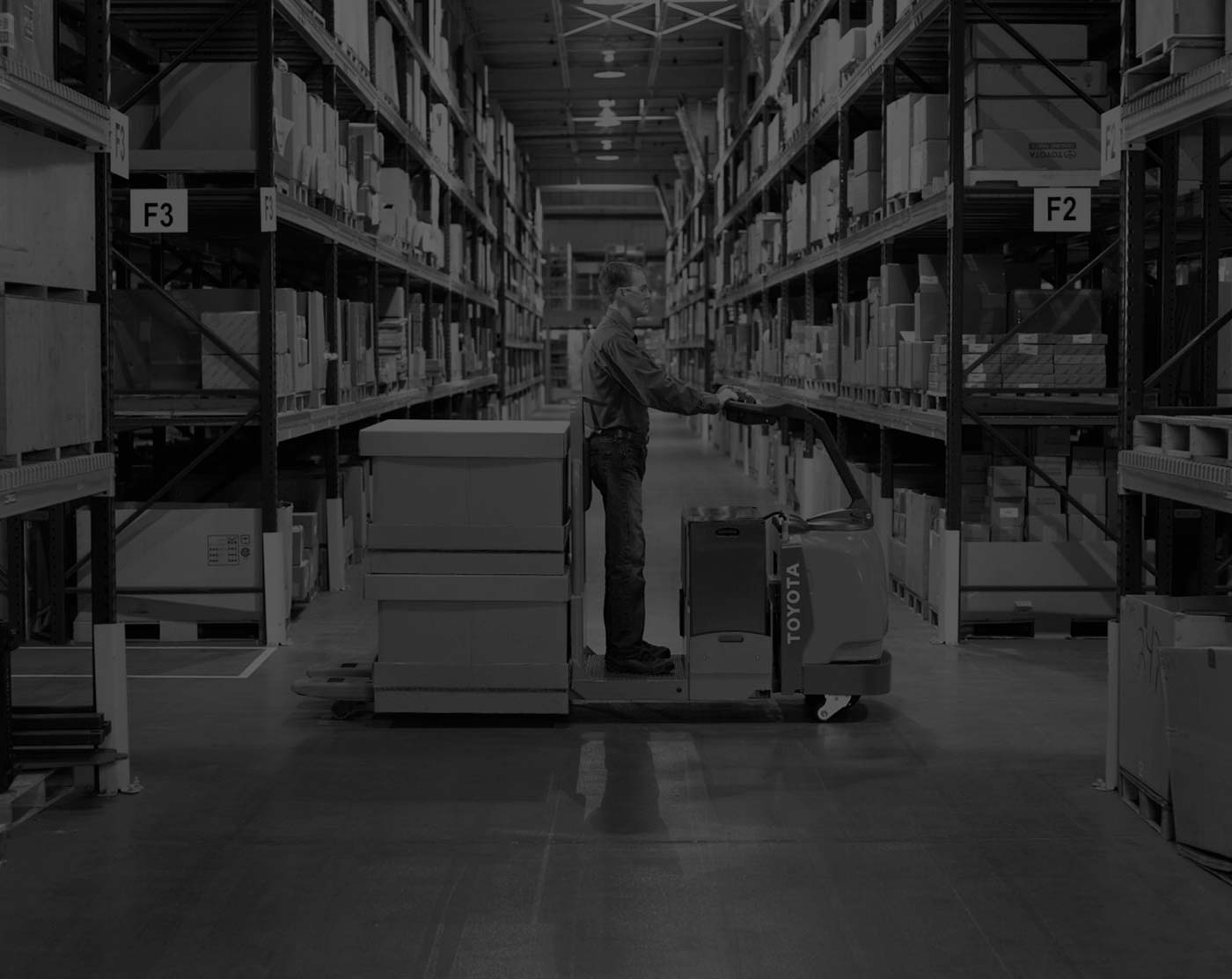

Built on a base of the reliable Toyota Center-Controlled Rider Pallet Jack, the innovative Toyota Center-Controlled Rider Automated Forklift uses advanced technology in environmental detection to automate repetitive tasks in your warehouse.

Load Capacity 7,000 lbs.
Technology LIDAR
Electrical  System 24V
Overall Length 138.75″ – 148.75”
Overall Height 46.82 – 51.62”
Overall Width 32.5”



Request a Quote

Don’t know exactly what you need? Not to worry. A member of our team will contact and assist you.

Model
Number
Load Capacity*
(lbs)
Max Travel Speed
Full Load (mph)
Max Lift Speed
Full Load (fpm)
Max Gradeability
Full Load (%)
Basic Right Angle
Stack** (in.)
8HBC40A 8,000 5 N/A N/A N/A

* Based on 24″ Load center
** Add load length and clearance

Product specifications may not reflect the most current product details. All specifications should be verified by Shoppa’s Material Handling prior to purchase.

Performance

  • AC drive motor with thermal protection & current limiting
  • 24-Volt electrical system
  • Fault code memory with hour meter reading
  • Regenerative braking
  • Programmable performance
    • Adjustable maximum speed
    • Adjustable acceleration
  • Lift limit switch4
  • Multiple hour meter indicator
  • Battery discharge indicator
  • Fused control & power circuits
  • Hydraulic overload protection valve4
  • Dual 1.25 inch diameter lift cylinders4
  • On/off key switch

Ease of Service

  • AC drive motor (no brushes or commutator)
  • One-piece, lightweight service access cover
  • Teflon coated PolylubeTM lift linkage bushings (maintenance free)4
  • Error indicator with self-diagnostics
  • Self-adjusting electric disc brake

Automation

  • Natural features navigation
  • Velocity drive LIDAR safety field
  • Dual LIDAR scanners
  • Cantilevered load detection
  • Complete traffic control
  • Fork tip sensors4
  • Load detection on forks4
  • LCD system display
  • BlueBotics controller

Ergonomics

  • Multifunction control handle with ergonomically angled handgrips & wrap-around hand guard
  • Dual thumbwheels with twist grips for directional control & travel speed
  • Intuitively positioned lift/lower buttons
  • Horn button
  • High-speed interlock button
  • Bubble-cushioned operator floor mat, padded backrest & knee pad
  • Walk-through operator compartment
  • Low platform step height
  • Axle weldment rubber suspension system5
  • Low-effort power steering with adjustable height control handle

1 Standard only with fork lengths below 84″ (2134 mm). 2 Standard only with fork lengths 84″ (2134 mm) & above. 3 Battery compartment width is 30.25″ (768 mm) when equipped with optional battery compartment rollers. 4 Available on Center-Controlled Rider Automated Forklift only. 5 Available on Core Tow Tractor Automated Forklift only.
